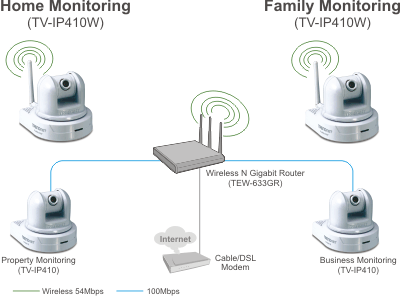

The TRENDnet TV-IP410W Wireless Pan/Tilt Internet Camera Server provides real-time wireless security surveillance over a large viewing area. Monitor people in your camera's viewing field and manage the camera from any Internet connection.
See more with one wireless Internet camera—remotely pan the camera side-to-side a remarkable 330 degrees and tilt up-and-down 105 degrees.
The TV-IP410W provides high quality video streams over a secure wireless connection. Advanced intuitive software includes motion detection recording, email alerts* and scheduled recordings. This camera's brilliant image quality, pan and tilt functionality and low light recording capabilities make it ideal for home, small office and business use.

|
|
Features/Specifications:
|
- TRENDnet TV-IP410W SecurView Wireless-G Pan/Tilt/Zoom Internet Camera
- General Features:
- Compatible with wireless g and b devices
- Advanced encryption modes include WEP, WPA-PSK and WPA2-PSK
- Pan 330º side-to-side and tilt 105º up-and-down from any Internet connection
- High quality MJPEG video recording with up to 30 frames per second
- Supports TCP/IP networking, SMTP email, HTTP and other Internet protocols
- Record streaming video to your computer
- Sends image snapshots to FTP and email
- Motion detection that triggers email alerts, image snapshot and video recording
- Time stamp overlay
- Quick Universal Plug and Play (UPnP) installation
- Complimentary SecurView™ software: view and record up to 16 cameras simultaneously
- Camera Specifications:
- Image Sensor
- Sensor: 1/4” color CMOS sensor
- Resolution: 640 x 480 pixel
- Fixed Lens: f: 4.0mm, F: 1.8
- Viewing Angle: 64 degree
- Minimum Illumination: 0.5 lux
- Video/Image Setting:
- Video Format: MJPEG
- Image Frame Rate: 30fps @VGA, QVGA, QQVGA
- Frame Rate Setting: 1 ~ 30fps (frames per second)
- Compression Ratio Setting: 5 levels
- Resolution: 640 x 480, 320 x 240, 160 x 120
- Digital Zoom: 3x
- Exposure Control, White Balance, Gain Control: Automatic
- Image Setting: Adjustable Brightness, Contrast, Saturation
- Flip Images: Vertical / horizontal
- Light Frequency 50Hz, 60Hz or outdoor
- Pan/Tilt:
- Pan Range: +165° ~ -165°
- Tilt Range: +90° ~ -15°
- Preset Positions: 8 positions
- Control: Up, down, left, right, center
- Communication:
- LAN: 10/100Mbps Auto-MDIX
- Protocol: TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE and UPnP
- Hardware Specifications:
- System
- CPU: ARM9 base
- SRAM: 32Mbyte SDRAM
- ROM: 4Mbyte NOR Flash
- OS: Linux
- LEDs: Power (orange), link (green), LED enable/disable support
- Wireless:
- Standard: IEEE 802.11b/g
- Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK (TKIP/AES)
- Antenna: 2dBi detachable reverse SMA connector
- Other:
- GPIO: 1 input and 1 output
- Power Specifications:
- Power: 12VDC,1.5A external power adapter (3.5 mm)
- Power Consumption: 9 watts (max)
- Environmental Specifications:
- Temperature:
- Operation: 0°C ~ 45°C (32°F ~ 113°F)
- Storage: -10°C ~ 60°C (14°F ~ 140°F)
- Unit Dimensions:
- 4.53 x 4.33 x 4.13-inches (H x W x D)
- Weight: 12.4 oz
- Regulatory Approvals:
- FCC
- CE
- WEEE
- RoHS compliant
|
|
Package Includes:
|
- TRENDnet TV-IP410W SecurView Wireless-G Pan/Tilt/Zoom Internet Camera
- Multi-Language Quick Installation Guide
- CD-ROM (User’s Guide and Utility)
- Cat. 5 Ethernet cable (1.8m / 5.9ft)
- Power adapter (12V, 1.5A)
- GPIO adapter
- Mounting Kit
|
|
Additional Information:
|
- Notes:
- Model: TV-IP410W
- Product Requirements:
- System Requirement (Web Configuration):
- CPU: Pentium III 350MHz or above
- Memory Size: 128MB or above
- Resolution: 800 x 600 or above
- Browser: Internet Explorer 6.0 or above
- Supported OS: Windows 2000/XP/Vista/Windows 7
- System Requirement (SecurView™ Software)
- CPU: Pentium 4 1GHz or above
- Memory Size: 512MB or above
- Resolution: 1024 X 768 or above
- Supported OS: Windows 2000/XP/Vista/Windows 7
|
|
